2025-03-13
As network devices become more sophisticated and power-hungry, the demand for higher Power over Ethernet (PoE) capabilities is rapidly increasing. Enter PoE++, the latest evolution in PoE technology, designed to deliver significantly more power than its predecessors. GZCOM, a leading innovator in networking solutions, presents this comprehensive guide to PoE++ switches, exploring their benefits, applications, and how to choose the right switch for your high-power networking needs.

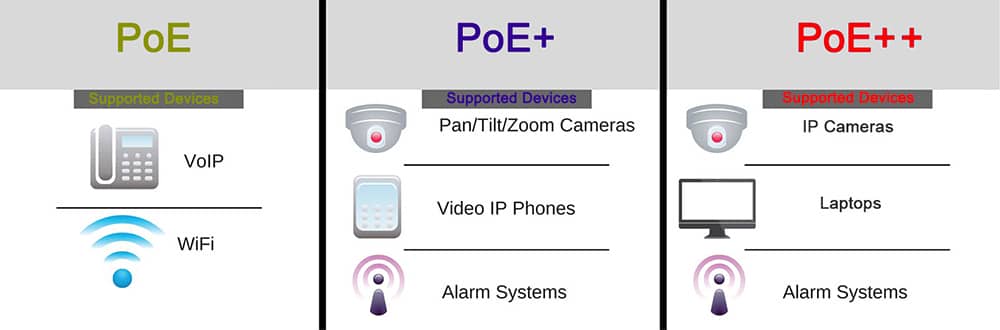

PoE++, also known as IEEE 802.3bt or Type 4 PoE, represents the cutting edge of Power over Ethernet technology. Building upon the foundations of PoE (802.3af) and PoE+ (802.3at), PoE++ dramatically increases the power delivery capacity, making it suitable for a new generation of high-power network devices. Unlike earlier PoE standards, PoE++ can provide up to 90W of power at the source and at least 71W at the device, effectively doubling the power output of PoE+.
Key advancements of PoE++ include:
Increased Power Delivery: Up to 90W at the PSE (Power Sourcing Equipment) and 71W at the PD (Powered Device).
Backward Compatibility: PoE++ switches are backward compatible with PoE and PoE+ devices, ensuring seamless integration with existing infrastructure.
Four-Pair Powering: PoE++ utilizes all four twisted pairs in Ethernet cabling to deliver power, maximizing efficiency and minimizing power loss.
Intelligent Power Management: Advanced PoE++ switches offer intelligent power management features, optimizing power allocation and ensuring efficient energy utilization.
The enhanced power capabilities of PoE++ switches unlock a wide range of new applications and make them ideal for powering demanding network devices that were previously challenging or impossible to power via PoE. Key applications include:
The latest Wi-Fi 6 and Wi-Fi 7 access points, with their increased bandwidth and advanced features, often require more power than PoE+ can provide. PoE++ switches deliver the necessary power to ensure these high-performance APs operate at their full potential, maximizing wireless network speeds and coverage.
Advanced PTZ security cameras with features like high-resolution sensors, infrared illuminators, and motorized zoom lenses demand significant power. PoE++ switches provide ample power to operate these feature-rich cameras reliably, enabling advanced surveillance capabilities.
Modern video conferencing systems, especially those with high-definition displays and integrated audio, can benefit significantly from PoE++. PoE++ switches can power these systems, simplifying setup and reducing cable clutter in meeting rooms and conference spaces.
Advanced LED lighting systems, especially those used in smart buildings and requiring precise control and dimming, can be powered by PoE++ switches. This enables centralized power and control for energy-efficient and intelligent lighting solutions.
Beyond these key applications, PoE++ switches can power a growing range of high-power IoT devices, including industrial sensors, point-of-sale (POS) systems, and other demanding network appliances. As technology evolves, PoE++ will become increasingly essential for powering the next generation of network devices.
While PoE and PoE+ switches remain suitable for many applications, PoE++ switches offer distinct advantages when high power delivery is required:
Future-Proofing Your Network: Investing in PoE++ switches ensures your network infrastructure is ready to support current and future high-power devices, avoiding the need for costly upgrades later.
Simplified High-Power Device Deployment: PoE++ significantly simplifies the installation and deployment of high-power devices, eliminating the need for separate power cabling and reducing complexity.
Increased Device Compatibility: PoE++ switches support a wider range of devices, including both low-power and high-power devices, offering greater versatility.
Enhanced Power Management for High-Demand Scenarios: For deployments with a mix of standard PoE devices and high-power devices, PoE++ switches provide the necessary power headroom and intelligent management capabilities.
Consider GZCOM's range of PoE++ switches
Selecting the ideal PoE++ switch requires careful consideration of your specific needs. Key features to evaluate include:
Total PoE Power Budget: Ensure the switch offers a sufficient total power budget to power all your connected PoE++ devices simultaneously. Calculate your power needs accurately and factor in future expansion.
Number of PoE++ Ports: Determine the number of PoE++ ports you require. Consider switches with varying port densities (e.g., 8-port, 16-port, 24-port, 48-port PoE++ switches) to match your deployment size.
Port Speed: Gigabit Ethernet is highly recommended for PoE++ switches to handle the bandwidth demands of high-power devices like Wi-Fi 6/7 APs and HD cameras. 10 Gigabit uplinks may also be beneficial for larger deployments.
Managed vs. Unmanaged: For advanced network control, VLANs, QoS, and remote management, choose managed PoE++ switches. Unmanaged switches are suitable for simpler plug-and-play deployments.
PoE Standard Compliance: Verify the switch fully complies with the IEEE 802.3bt PoE++ standard for guaranteed performance and interoperability.
Reliability and Build Quality: Look for reputable brands like GZCOM known for producing reliable and durable networking equipment. Consider industrial-grade PoE++ switches for harsh environments.
GZCOM is committed to providing cutting-edge networking solutions, and our PoE++ switch portfolio reflects this commitment. GZCOM PoE++ switches are engineered for high performance, reliability, and ease of use, offering:
High Power Output: Full 90W PoE++ per port on select models to power even the most demanding devices.
Robust Performance: Gigabit Ethernet speeds and advanced switching capabilities for optimal data throughput.
Managed and Unmanaged Options: A range of PoE++ switches to suit different network complexity and management requirements.
Industrial-Grade Models: Ruggedized PoE++ switches for reliable operation in harsh industrial and outdoor environments.
Intelligent Power Management: Advanced features for efficient power allocation and monitoring.
Reliable GZCOM Quality and Support: Backed by GZCOM’s reputation for quality and excellent customer support.
PoE++ switches are revolutionizing network deployments by providing the high power necessary to support the latest generation of demanding devices. Whether you are deploying high-performance Wi-Fi 6/7 APs, advanced PTZ cameras, or other power-hungry devices, PoE++ offers a future-proof, efficient, and reliable powering solution. Explore GZCOM's comprehensive range of PoE++ switches and discover how we can help you power up your network for the challenges of tomorrow.
